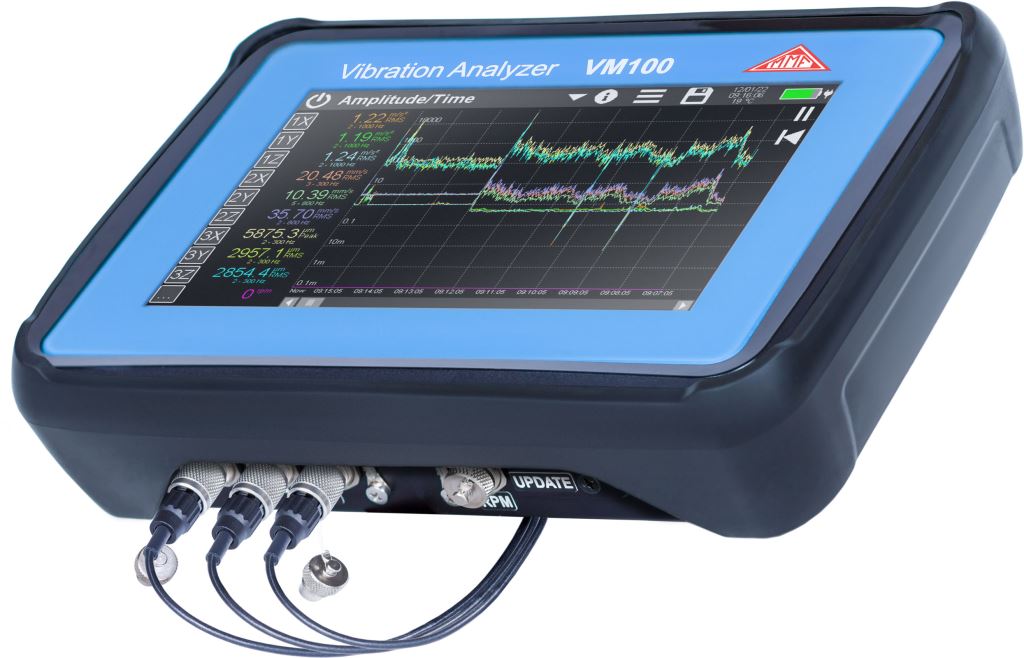

| Vibration Analyzers |
VM100A |
VM100B |
| Measuring inputs |
9 IEPE inputs
with TEDS support
Tacho input for rpm measurement |
3 IEPE inputs
with TEDS support
Tacho input for rpm measurement |
| Infrared thermometer |
built-in |
none |
| Overall value measurement |
Vibration acceleration, velocity and displacement
RMS (1s and infinite), peak value (1s and infinite), vector sum, main frequency
Frequency range: 0.4 Hz to 24 kHz (4 kHz for 9 channels)
Various high pass and low pass filters |
| Frequency analysis (FFT) |
Frequency range: 1 Hz - 22 kHz
1 to 3 channels
1024 to 65536 points
Resolution: 0.1 to 48 Hz
Triggering: Auto; Tacho; Level
Waterfall mode: 50 spectra; 1 channel
Spectrogram mode: 300 spectra; 1 channel |
| Third-octave analysis |
Frequency range: 1 - 160 Hz
1 to 3 channels
21 third-octave bands
Limit lines for VC and Nano criteria |
| Human vibration |
VM100-HA: Hand-arm measurement for one or both hands
VM100-WB1: Whole-body measurement for health and comfort evaluation on vehicles and ships
VM100-WB3: Whole-body measurement at seat, backrest and feet for comfort evaluation on vehicles
Display of all vibration values and time until reaching maximum daily exposure
Graphical recording |
| Measurement data recording |
SD card; removable; FAT file system
CSV for measuring values; BMP for screenshots; WAV for raw signals |
| Display |
TFT RGB touch screen; 800 x 480 dots |
| Data interface |
USB type C; mass storage mode |
